combined for reformation or shaft bearing, gear press in or extruded.
• It designed with double speed of high and low pressure.
• Includes pressure relaese valve, it will release pressure
back to 35 tons when the pressure over 40 kgs.
• Includes a 600kg / c㎡ precision pressure gauge.
• Capacity：35 tons
• N.W. 320kg G.W. 380kg CUFT. 36'

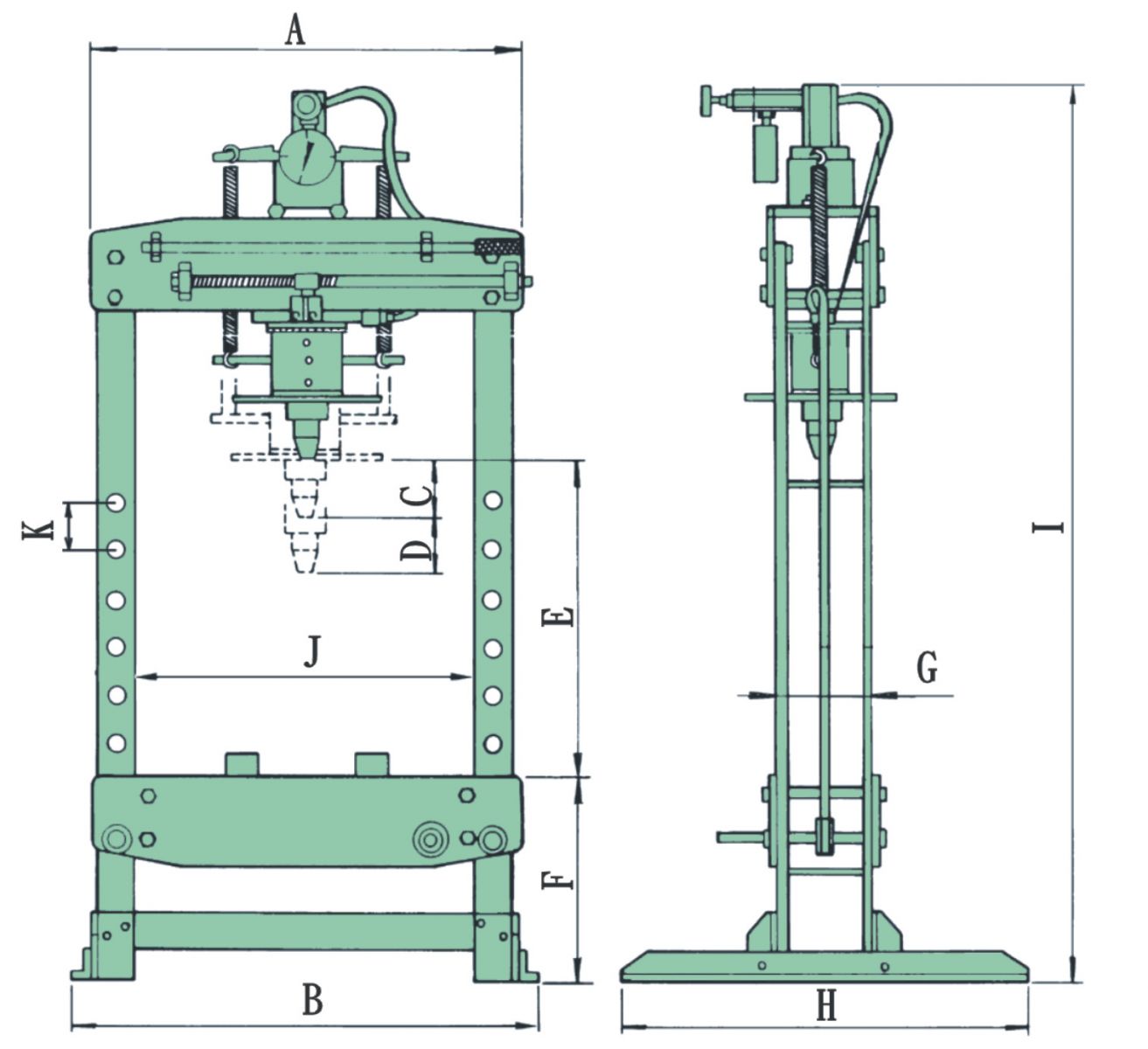

| 編號 Item | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | J(mm) | K(mm) |
| UBP1201 | 460 | 536 | 85 | 50 | 534 | 50 | 135 | 304 | 958 | 360 | 102 |
| SP150A | 800 | 860 | 110 | 100 | 595 | 355 | 166 | 750 | 1640 | 628 | 90 |
| SP220B | 680 | 850 | 135 | ~ | 865 | 150 | 100 | 650 | 1560 | 570 | 120 |
| SP350A | 1000 | 1080 | 110 | 80 | 530 | 410 | 236 | 850 | 1730 | 790 | 95 |
