• All models are featured with their rugged construction and handle efforts.
• All metal construction and hand size release knobs that anti-leaking mechanism are truly suitable to industrial requirement and your daily works.
• Both single and two-speed models are available.
• Two-speed pumps provide fast pumping to meet the loading with the cylinder unloaded.
• Internal overload valve prevents pump from being used beyond its rated capacity.
• External adjustable relief valve with anti-losing mechanism design. • Carrying handles for easy portability.

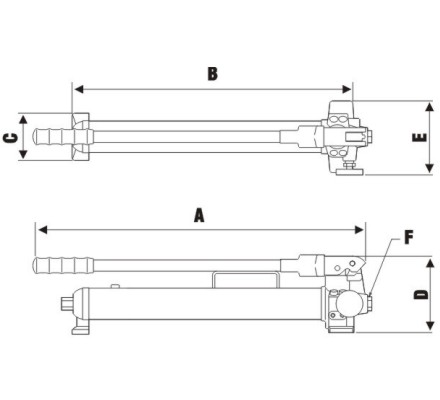

Model	Pressure Rating (bar)		Usable Oil Capacity (c.c)	Oil Volume Per Stroke(c.c)		A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Oil Port Thread F	Weight (kgs)
Model	1st Stage	2nd Stage	Usable Oil Capacity (c.c)	1st Stage	2nd Stage	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Oil Port Thread F	Weight (kgs)
HB350	13.8	700	350	13.0	2.8	343	310	66	146	142	3/8NPT	5.9
HB600	13.8	700	600	13.0	2.8	543	480	90	146	142	3/8NPT	7.6
HB700	13.8	700	700	13.0	2.8	633	528	90	146	142	3/8NPT	8
HC1500	13.8	700	1500	13.0	2.8	633	551	106	200	142	3/8NPT	11.2
HC2500	13.8	700	2500	13.0	2.8	713	632	106	200	142	3/8NPT	12
HE2000	13.8	700	2000	13.0	2.8	580	526	140	189	148	3/8NPT	11.5
HF350	13.8	700	350	7.0	1.0	343	310	66	127	142	3/8NPT	5.5
HA350	700		350	3.2		343	292	90	146	142	3/8NPT	5.7
HA600	700		600	3.2		543	478	90	146	142	3/8NPT	7.1
HA700	700		700	3.2		633	526	90	146	142	3/8NPT	7.6
HD300	700		300	2.8		330	283	90	127	130	1/4NPT	4.4
HD500	700		500	2.8		530	469	90	127	130	1/4NPT	5.4
